SAMR100
Sa Plate Adaptor
Couldn't load pickup availability

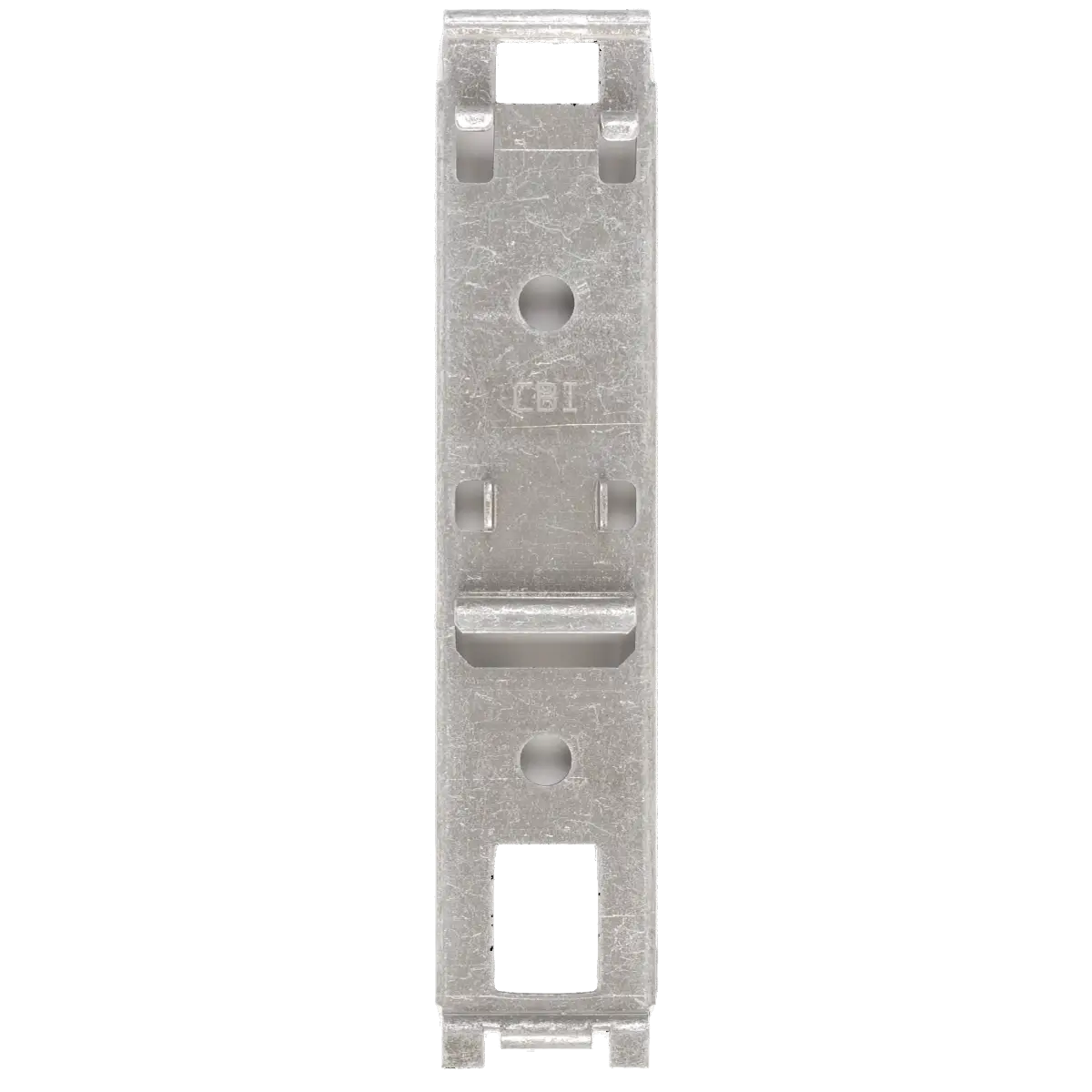

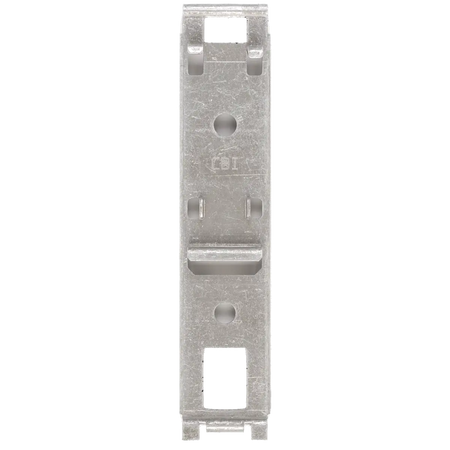

The CBI SAMR100 is a metal adaptor plate used to upgrade legacy electrical distribution boards by converting older Heinemann-type CF clip trays to accept modern CBI Samite Mini Rail components.
Function: It facilitates the mounting of Q-range and S-range Mini Rail MCBs into old Heinemann CF trays.
Installation: Two or more plates are inserted into the existing CF tray, and the Mini Rail is then seated on top and secured by bending the protruding metal tabs.
Material: Constructed from galvanised or zinc-plated steel for durability and corrosion resistance.
Dimensions: Key Electric Online lists the dimensions as approximately 118 mm x 22 mm x 2 mm.
