CBI Distribution Board 1-Phase 230V DIN Mount
SKU 805-0040Supplier Code: 6009522902339
- DIN mount distribution box with integrated energy meter Specs Type
- 230 V AC, 1-phase Voltage
- 7 digits, 1/10 kWh Display
- 5(80) A Current rating
Pay in 4 interest-free instalments of
R262.50.
Or 3 interest-free payments of
R350.00
with PayJustNow.
Delivery
Dates and cost at checkout
Only 1 left
Collect in store
Als Hardware Ruimsig
Only 1 left · Usually ready in 24 hours · Free
Ways to pay
Card
Visa or Mastercard, credit or debit
Apple Pay & Google Pay
Pay with your phone or watch at checkout
Instant EFT
Pay straight from your bank account
Pay in store
Cash or card when you collect at Amalgam
Buy now, pay later
Interest-free instalments with Payflex or PayJustNow
Credit
Apply with Challenor Finance or Capitec
Secure checkout. Card details are encrypted and never stored by Al's.
Complete the job
What customers add to this: the bits you'll need to get started.
-
This item: CBI Distribution Board 1-Phase 230V DIN Mount
R1,049.99
Total for items
Description

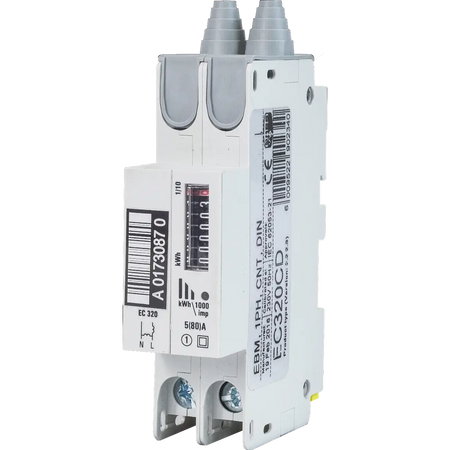

This 1‑phase 230 V DIN mounting distribution box integrates a compact energy meter module for simple monitoring within a DIN rail setup. The unit carries a 7 digit energy display that reads to 1/10 kWh and includes a dual colour lamp to indicate consumption rate and incoming supply presence. Aimed at easy integration into standard DIN rail boards, it ships with anti tamper terminal protection plugs for added security at the terminal block. The label references IEC 61036 class 1 measurement and is compatible with a range of DIN rail distribution configurations, including EC320CD style boards.
Key details visible on the device include a 5(80)A supply rating and a straightforward, modular form factor designed for single phase 230V circuits. The compact design makes it suitable for compact distribution boards where space is at a premium, while still delivering clear energy use information at a glance.
Specifications
| Brand | CBI |
|---|---|
| Specs Type | DIN mount distribution box with integrated energy meter |
| Voltage | 230 V AC, 1-phase |
| Display | 7 digits, 1/10 kWh |
| Current rating | 5(80) A |
| Meter standard | IEC 61036 class 1 |
| Accessories | anti tamper terminal protection plugs included |
| Variant reference | EC320CD compatible |
Specifications
| Brand | CBI |
|---|---|
| Specs Type | DIN mount distribution box with integrated energy meter |
| Voltage | 230 V AC, 1-phase |
| Display | 7 digits, 1/10 kWh |
| Current rating | 5(80) A |
| Meter standard | IEC 61036 class 1 |
| Accessories | anti tamper terminal protection plugs included |
| Variant reference | EC320CD compatible |
