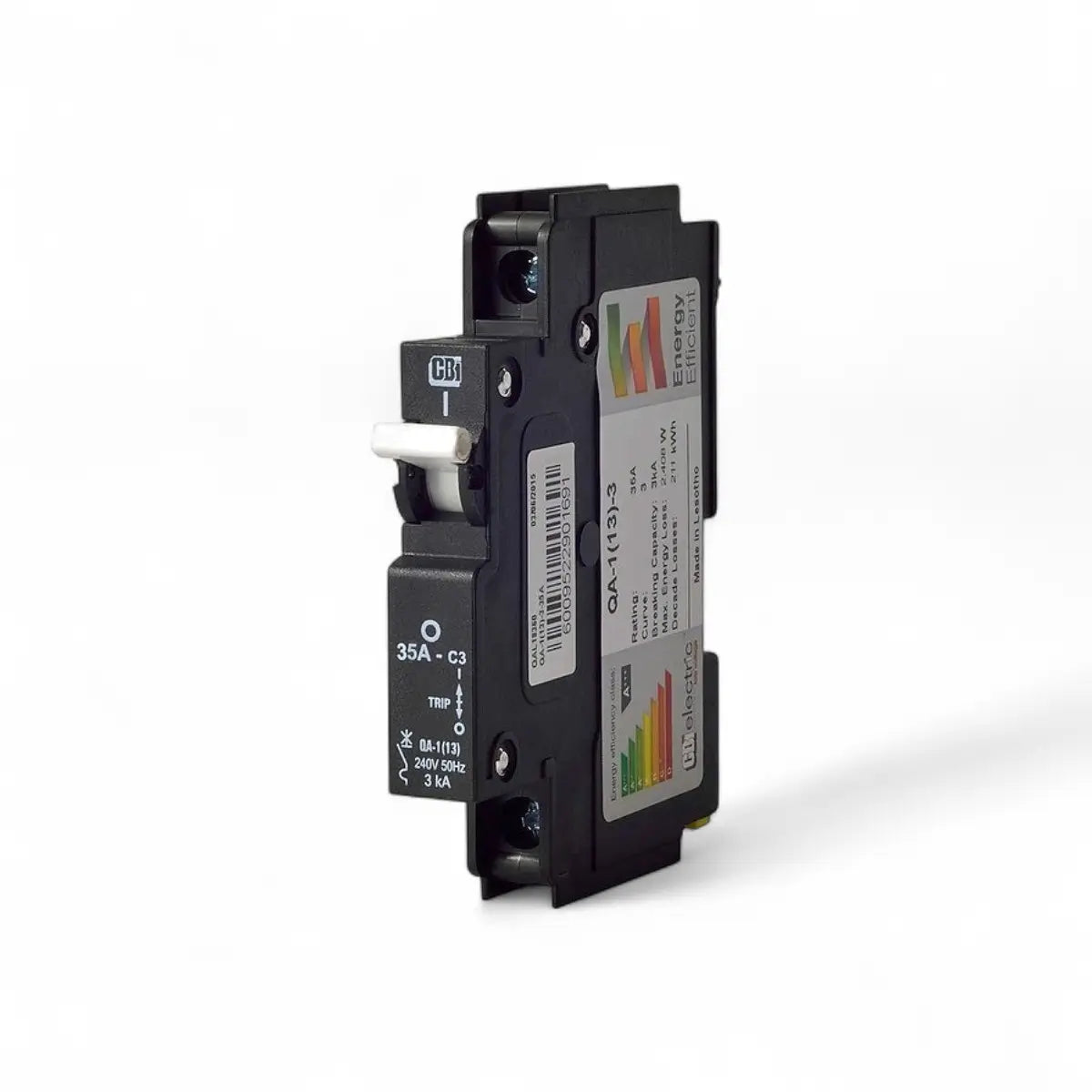

Qa-1(13)-3-35A Blister Pack Switch

A 35A single-pole miniature circuit breaker (MCB) from the QA(13) series by CBI-electric: low voltage. This specific unit is packaged in a retail-ready blister pack and is designed to protect electrical circuits in residential and commercial systems from damage caused by overloads and short circuits.

Key Specifications
Current Rating: 35 Amps.
Breaking Capacity: 3kA short-circuit interrupting rating.
Technology: Hydraulic-Magnetic technology, ensuring the trip point remains accurate and independent of ambient temperature (-40 °C to +85 °C).
Mounting: Dual Mount design, making it compatible with both standard DIN rail and CBI Mini rail (Samite) distribution boards.
Time Delay: Typically features a Curve 3 (medium/fast trip) characteristic.
Module Width: Compact 13 mm single-pole module.
