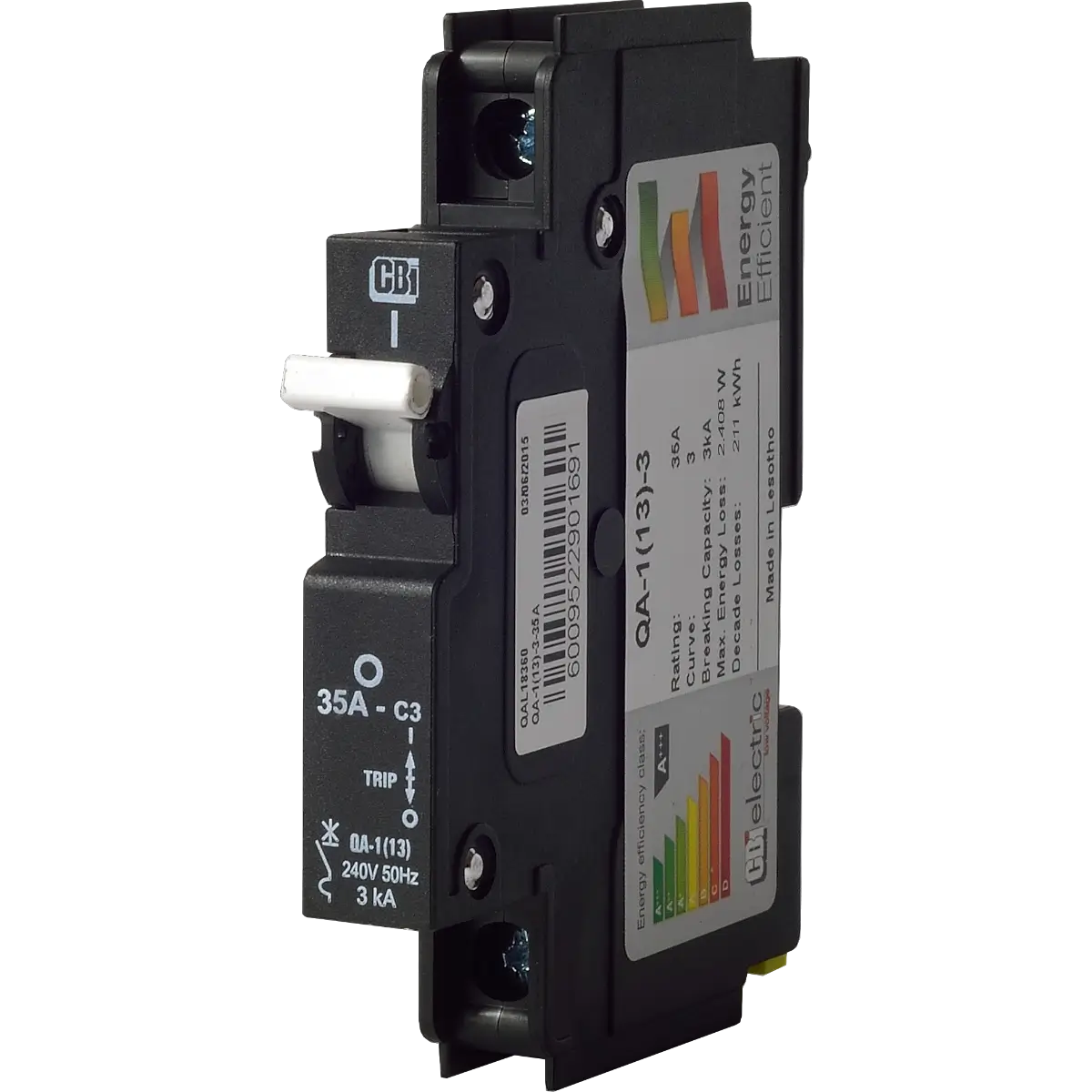

Qa 1(13)-D-3-35A Switch

A 35A single-pole miniature circuit breaker (MCB) from the QA-Series by CBI-electric: low voltage.

Technical Specifications
Current Rating: 35 Amps.
Breaking Capacity: 3kA short-circuit Interrupting Rating.
Technology: Hydraulic-Magnetic mechanism, which ensures accurate tripping regardless of ambient temperature changes (operational from -40°C to +85°C).
Mounting: Dual Mount design, making it compatible with both standard DIN rail and CBI Mini Rail (Samite) systems.
Trip Characteristics: Features a Curve 3 (fast trip) time delay, ideal for general-purpose circuit protection.
Width: Compact 13 mm single-pole module.
Compliance: Meets VC 8036 (SANS 556-1) and IEC 60947-2 safety standards.
