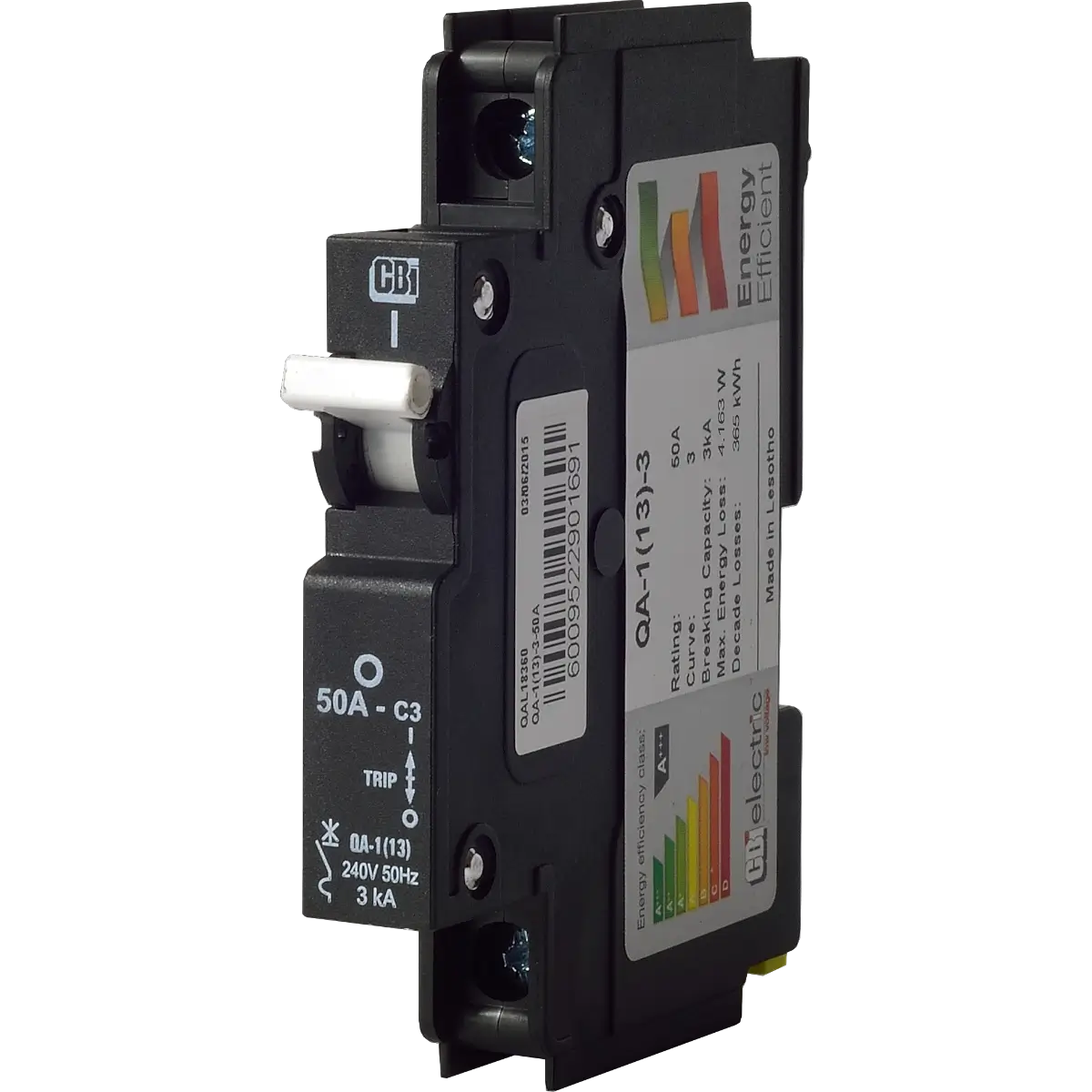

Qa-1(13)-D-3-50A Switch

A single-pole 50A miniature circuit breaker (MCB) from CBI-electric: low voltage. It is designed for high-power residential or commercial circuits in South Africa, such as large geysers, pumps, or specific high-draw appliances.

Technical Specifications
Current Rating: 50 Amps.
Breaking Capacity: 3kA short-circuit interrupting rating.
Technology: Hydraulic-Magnetic mechanism, ensuring that the tripping performance is independent of ambient temperature.
Mounting: Dual Mount design, compatible with both standard DIN rail and CBI Mini Rail (Samite) systems.
Trip Characteristics: Typically features a Curve 3 (fast trip) time delay.
Module Width: Compact 13 mm single-pole module.
