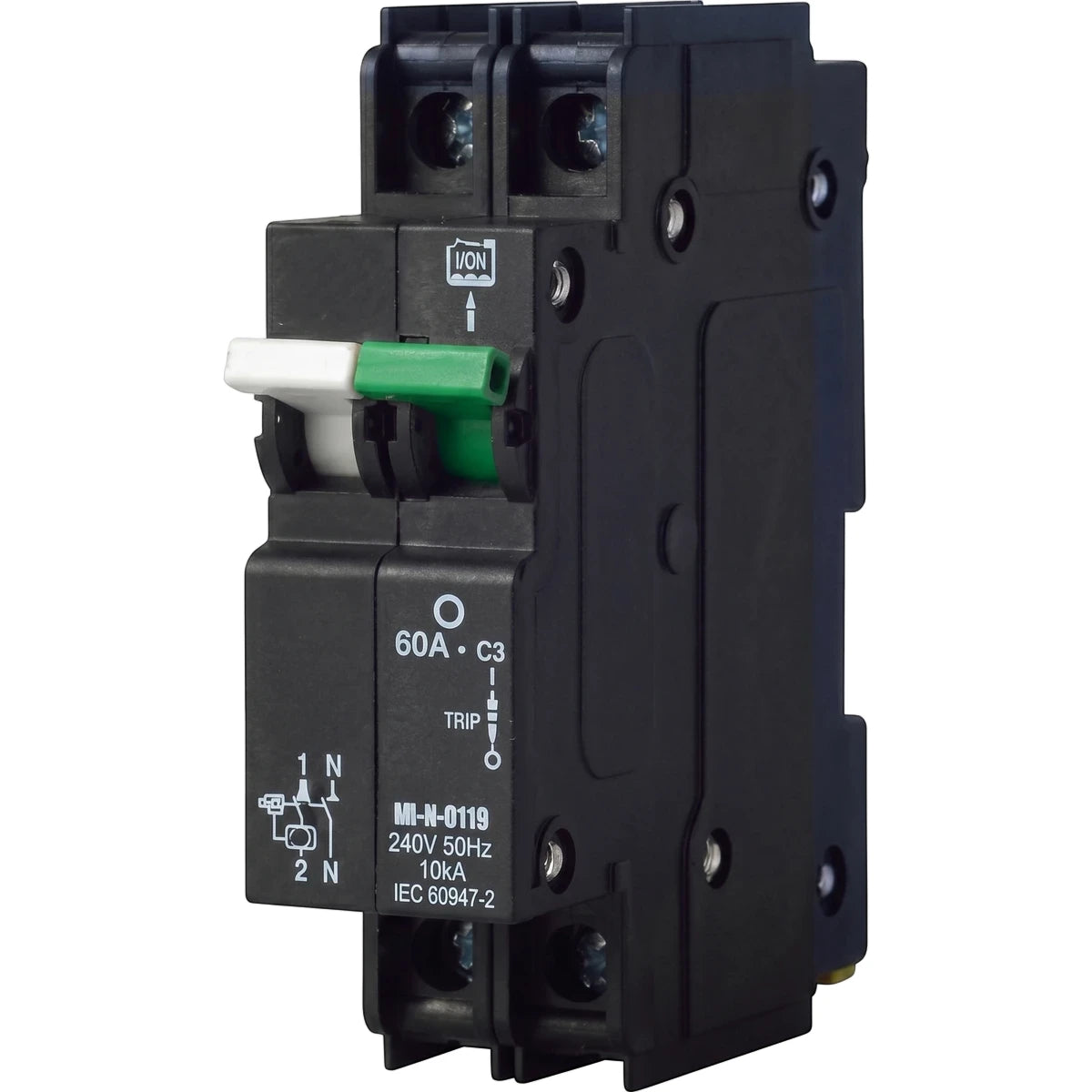

Black Qa-N-2(13)-D-3-60A electrical switch with white and green toggle for circuit protection.
Black Qa-N-2(13)-D-3-60A electrical switch with white and green toggle for circuit protection.

QAD21360

Qa-N-2(13)-D-3-60A Switch

SKU: 805-0023 Supplier Code: 9900000105808
R 559.99 inc. VAT
Only 3 left
Low inventory - Hurry up!
Size

A 60A 2-pole miniature circuit breaker (MCB) from CBI-electric: low voltage. It is frequently used as a main switch circuit breaker in residential solar distribution boards and high-load single-phase installations.

Technical Specifications
Current Rating: 60 Amps.
Poles: 2-Pole (configured as 1-Pole + Neutral), which switches and protects both the line and neutral conductors simultaneously.
Breaking Capacity: 3kA short-circuit interrupting rating.
Technology: Hydraulic-Magnetic technology ensures precise tripping that is independent of ambient temperature (-40°C to +85°C).
Mounting: Dual Mount design, compatible with both standard DIN rail (45 mm) and CBI Mini rail/Samite (57 mm) systems.
Module Width: Ultra-compact 26 mm width (consisting of two 13 mm modules).
Trip Characteristics: Features a Curve 3 (fast/standard trip) time delay.
Compliance: Meets VC 8036 (SANS 556-1) and IEC/EN 60947-2 standards.
