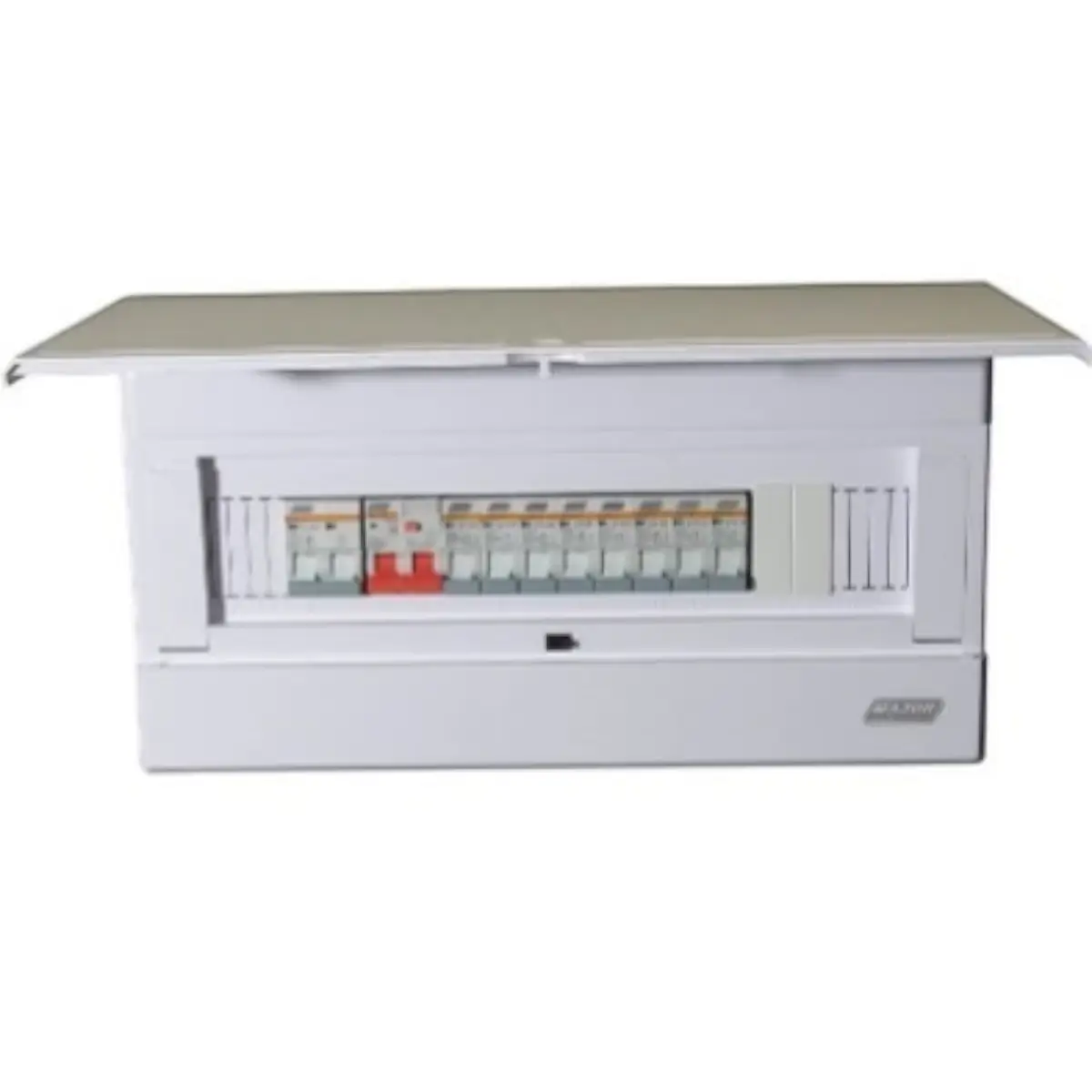

Assembled 18 Way Steel Tray 63A Heavy Duty Double Pole 3kA Surface Mount Box

Overall Dimensions : 394mm x 210mm x 97mm
Heavy duty powder coated iron tray
Circuit labels included
Adjustable Din rail & front cover to ensure level installation
Tested and approved to EN60947-1
CE Certified
Din rail connection according to EN50022
Supplied with earth/neutral bar
4 x 20mm knock outs, 2 x 30mm knock outs, 2 x 75mm(L) x 30mm(H) knock outs & 1 x 200mm(L) x 25mm(H) knock out
Flat elegant design
MCB’s are C Curve thermal magnetic
MCB’s are tested and approved to IEC60947-2 +VC8036 +SANS556-1
RCCB has been tested and approved to VC8035 +SANS 556-2-3 +IEC61008-1
Components :

1 x VBM1518SM (15-18 Surface Mount Distribution Board)
1 x V3C2P63 (63A 3Ka Double Pole MCB)
1 x VE2P63 (63A Double Pole RCCB)
1 x V3C1P32 (32A 3Ka Single Pole MCB)
4 x V3C1P20 (20A 3kA Single Pole MCB)
3 x V3C1P10 (10A 3kA Single Pole MCB)
